Introduction

ODM CNC Milling Metal Fabrication Part is a sophisticated machining process primarily employed for the fabrication of prismatic parts, which are characterized by their flat faces and straight edges. At the heart of this process is the CNC milling cutter. A common type is the end milling cutter, which features a rotating cylindrical cutter head equipped with multiple chip discharge grooves. These grooves play a crucial role in efficiently removing the material chips generated during the machining process. Thanks to its ability to move along different axes, such as the X, Y, and Z axes, the end milling cutter can precisely process a wide range of features, including narrow and long spaces, intricate grooves, and detailed external profiles. The machine tool used for the milling operation is known as a milling machine. Among them, the NC milling machine often refers to an NC machining center, which combines multiple machining functions and offers enhanced automation and versatility. Milling can be categorized into two main types: manual milling, which requires direct human operation and control, and NC milling, which relies on programmed instructions to execute machining tasks with high precision and repeatability. All these milling operations are systematically carried out in a well - equipped machining workshop, where various safety and quality control measures are in place to ensure efficient and accurate production.

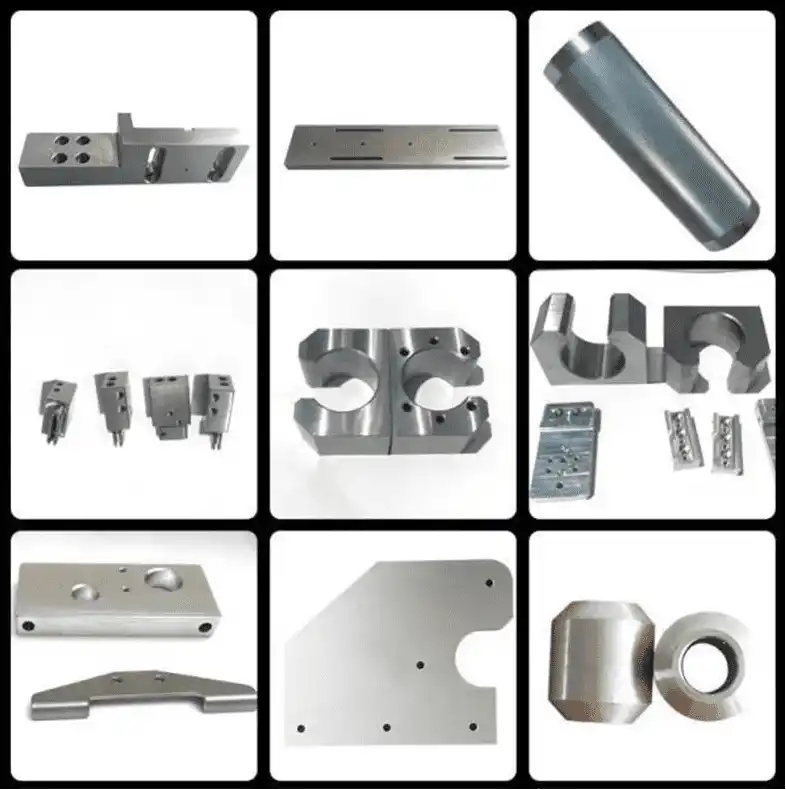

More CNC Milling Metal Fabrication Parts for your review

Product Characteristics:

• High dimensional accuracy is achieved through advanced CNC machining technologies and precise measurement systems. Our equipment and processes ensure that every part meets strict tolerances, guaranteeing a perfect fit in any assembly.
• Excellent surface finish is the result of meticulous machining techniques and careful post - processing. Whether it's a smooth, mirror - like surface or a specific texture, we can deliver a high - quality finish that enhances both appearance and functionality.
• Complex geometries possible due to our state - of - the - art multi - axis machining capabilities. We can create intricate shapes and detailed features that traditional methods cannot achieve, opening up new possibilities for product design.
• Consistent quality across production runs is maintained by our rigorous quality control protocols. From the first part to the last, every item undergoes thorough inspection to ensure it meets our high - standard specifications.
• Customizable to your exact specifications, our team works closely with you to understand your needs. We can tailor every aspect of the product, from dimensions and materials to surface finish and functionality, to perfectly match your requirements.

Production Process:

1. CAD/CAM programming involves using advanced software to create detailed 3D models and generate precise machining instructions. Our skilled programmers translate design concepts into digital code, optimizing toolpaths for efficient and accurate manufacturing.
2. Material selection and preparation are crucial steps. We carefully choose the right materials based on project requirements, considering factors like strength, durability, and corrosion resistance. Then, we prepare the materials by cutting, shaping, and cleaning them for machining.
3. CNC milling and machining utilize state - of - the - art equipment to transform materials into finished products. Our multi - axis CNC machines execute the programmed instructions with high precision, capable of handling complex geometries and producing parts with tight tolerances.
4. Quality inspection is an integral part of our process. Our trained inspectors use various tools and techniques, such as coordinate measuring machines, to thoroughly check each part for dimensional accuracy, surface finish, and overall quality, ensuring compliance with strict standards.
5. Post - processing (if required) enhances the functionality and appearance of the machined parts. This may include operations like deburring, polishing, heat treatment, or coating application, tailored to meet specific customer needs and improve the final product's performance.
6. Packaging and shipping ensure that the finished products reach customers in perfect condition. We use suitable packaging materials to protect parts from damage during transit and work with reliable shipping partners to provide timely and secure delivery, tracking orders until they arrive safely.

Applications:

Our ODM CNC Milling Metal Fabrication Parts find use in numerous industries, including:

• Automotive components are the building blocks of modern vehicles. We manufacture high - precision parts, from engine components that ensure power and efficiency to suspension parts for a smooth ride, all meeting strict automotive industry standards.
• Aerospace parts demand the highest levels of precision and reliability. Our offerings include lightweight yet durable components for aircraft structures, engines, and avionics, crafted to withstand extreme conditions and enhance flight performance.
• Medical devices require meticulous craftsmanship and biocompatible materials. We produce parts for a range of equipment, from surgical instruments to diagnostic devices, with a focus on sterility, precision, and patient safety.
• Electronics housings protect sensitive internal components while providing an appealing design. Our solutions offer excellent electromagnetic shielding, heat dissipation, and durability, suitable for various consumer and industrial electronics.
• Industrial machinery relies on robust and efficient components. We fabricate parts for heavy - duty equipment, such as gears, shafts, and frames, ensuring high load - bearing capacity and long - term operational stability.
• Defense equipment must meet stringent security and performance requirements. Our manufacturing capabilities cover a wide range of defense - related parts, designed to endure harsh environments and support critical military operations.

Our Advantages

1. Technological Innovation: Highly difficult products can find accurate solutions.

2. Processing Speed: Fast delivery speed to ensure punctual delivery.

3. Product Quality: The material is guaranteed, and the accuracy is as high as +/-0.01MM.

4. Confidential System: Triple confidentiality protection.

5. Measuring Equipment: Professional and mature inspection equipment.​​​​​​​

Shipment Information

FAQs

Q1:  What's the delivery time?

A1: 1) Sample: around 1-2weeks after receipt of deposit.

    2) Bulk production: around 1-2 week after sample. (May vary depending on specific items and item quantities)

Q2: What is the standard of package?

A2: 1) Neutral packing (plastic bag + carton)

    2) Custom packing (with logo or special package according to customer requirement).
